The following is a guide on how to use mermaid: an open-source diagrams DSL that is embedded in GitHub markdown rendering engine. With mermaid, developers can easily provide graphical representations of their projects/ideas, without having to generate an actual image, a feature that is not available with PlantUML. More information on GitHub embed diagrams can be read in their documentation.

Note: Although not explicit in the guide, to embed mermaid diagrams you need to create a codesnippet that starts with ```mermaid!

https://dev.to/360macky/enhance-your-readmes-with-native-mermaid-diagrams-3g7l


Many times when we think about how to solve a problem we choose to draw a flowchart or another type of visualization with the aim that everything is clear and that we don’t miss anything by the end.

When explaining this part to our friends, it can be very helpful for them to also have clear diagrams of the core parts of a system. And on GitHub, we have a native solution within our Markdown files (like READMEs) for creating these diagrams:

READMEs are a great way to provide a visual description of how your project works, from overall architecture to specific details. With flowcharts, you can illustrate the sequence of steps in a process, the different components of a system, or the relationship between elements (like classes).


What is Mermaid?

Mermaid is a popular library for creating diagrams and flowcharts from text. It is easy to use and can be used to create diagrams using simple text commands. It’s also open source and you can use it in GitHub.

In this article you will know how to use Mermaid to design diagrams with examples using the mermaid tags.

How to use Mermaid tags?

All you need to do is to define the diagram using a simple text-based syntax and then render the diagram using the mermaid tag.

For example, let’s say I want a flowchart diagram of 4 components. The “A” node will have arrows to “B” and “C”, and both “B” and “C” have arrows with a “D” node. I could represent this in code like this:

flowchart TD
A --> B;
A --> C;
B --> D;
C --> D;

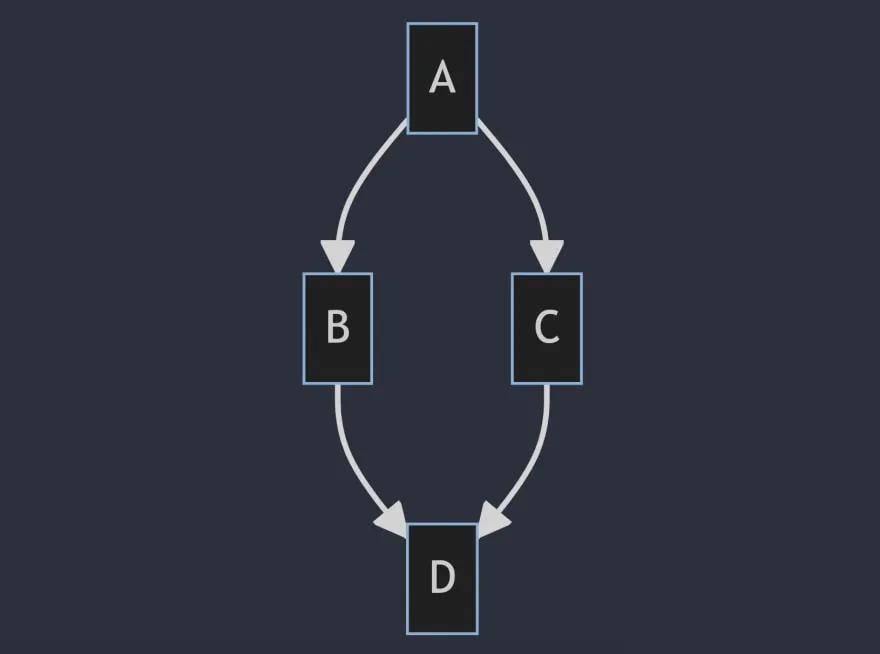

And this code will render the following diagram:

Diagram with Mermaid

As you can see, the syntax is quite simple and easy to understand.

Mermaid Basics

The Mermaid flowcharts are composed of nodes: shapes, edges, arrows and lines.

You need to define the flowchart orientation at the beggining. In the example of above the diagram will go from top to the bottom. But other orientations are:

In addition to flowcharts, Mermaid can also be used to create a variety of other diagrams, such as sequence diagrams.

Sequence Diagrams

To draw a Sequence Diagram, you need to write “sequenceDiagram” in the first line.

After that, you can connect with arrows two nodes. Using the characters:

-->

Here is an example of a sequence diagram created with Mermaid:

sequenceDiagram
    Alice->>+John: Hello John, how are you?
    Alice->>+John: John, can you hear me?
    John-->>-Alice: Hi Alice, I can hear you!
    John-->>-Alice: I feel great!
Sequence Diagram example of Alice and John nodes

State Diagrams

A state diagram is used to describe the flow of a variable. And you can also create a State Diagram using Mermaid. Starting with the stateDiagram and making connections between nodes with the characters: -->.

stateDiagram
    [*] --> Still
    Still --> [*]
    Still --> Moving
    Moving --> Still
    Moving --> Crash
    Crash --> [*]

The result will be the following:

State Diagram Example

Class Diagram

A class diagram is a great way to visualize relationships between classes. In this case, you will need to write the classes methods and you can add relationships between classes using other type of arrows.

classDiagram
    Animal <|-- Duck
    Animal <|-- Fish
    Animal <|-- Zebra
    Animal : +int age
    Animal : +String gender
    Animal: +isMammal()
    Animal: +mate()
    class Duck{
      +String beakColor
      +swim()
      +quack()
    }
    class Fish{
      -int sizeInFeet
      -canEat()
    }
    class Zebra{
      +bool is_wild
      +run()
    }
Class Diagram Example

Creation of other diagrams dynamically

How can you make the process of drawing diagrams even easier?

With Mermaid Live Editor you can create diagrams directly on the web. Using this website, every change you make on the code editor in the left side is reflected on the result in the right side. Like a CodePen.

Mermaid Live Editor
