The following is a write-up on how ipai.is built a geolocation database from scratch.

https://ipapi.is/geolocation.html


Geolocation is the process of mapping IP addresses to a geographical location defined by latitude and longitude. There are many use-cases for geolocation intelligence that are demanded by online businesses and service providers:

IP Geolocation Accuracy

Why is IP geolocation sometimes not accurate in general?

In some cases, allocated IPv4 and IPv6 networks are distributed geographically and thus one network can have multiple geographical locations. Furthermore, many networks are distributed geographically by design. Examples of such geographically disparate networks are mobile networks or satellite networks.

For example, how exactly would you geolocate the IP ranges belonging to the satellite Internet from Starklink from SpaceX? Find out by yourself by inspecting Starlink’s AS14593.

In other cases, IP networks are reassigned or reallocated by Regional Internet Registries or IP leasing companies (such as IPXO or ipbroker.com) and the geolocation completely changes as soon as a IP address is assigned a new owner.

It turns out that the process of geolocating IP addresses is a complicated endeavour. However, the accuracy that can be obtained is too good to be ignored in any IP address API.

How to build a IP Geolocation Database from Scratch?

The reminder of this page makes a deep dive into the technicalities of creating a geolocation database from scratch. If you are only interested in downloading the geolocation database, you can do so here.

Each IP address in the Internet is owned or administered by an organization. Regional Internet Registries (RIR’s) such as ARIN or APNIC store ownership information in their WHOIS databases.

However, WHOIS records don’t necessarily include geolocation information for allocated networks. Furthermore, organizations that own networks can use those networks in any geographical location they end up choosing. Even worse, those organizations can assign networks to any third-party organization or lease IP blocks to other entities. Therefore, it is inherently tricky to geolocate IP addresses and thus geolocation is often not accurate.

Having said that, the task to find and collect geolocation information can be divided into three different sub-tasks:

  1. Extract Geolocation Data from WHOIS Records Directly - WHOIS records often include direct geolocation information about IP addresses. WHOIS attributes such as geoloc and geofeed can be used to derive self-published geolocation knowledge about IP addresses.
  2. Interpolate Geolocation Knowledge from WHOIS Records - Often it is possible to derive and interpolate geolocation information from WHOIS attributes indirectly. For example, organizations that are administratively responsible for a network have to provide their postal address in WHOIS records. Sometimes, this postal address is also the geographical location of the organization’s networks.
  3. Consider Open Source Geolocation Projects - Many entities invested considerable resources into the geolocation problem and they provide their geolocation information for free. RIPE IPmap, geofeed-finder and OpenGeoFeed are good examples of such valuable open source projects.

After compiling a raw geolocation database from the above sources, it may have incomplete or inconsistent records.

The collected geolocation data may be incomplete since records with country and city information don’t always include coordinates. Vice versa, sometimes raw records with coordinates don’t have country and city information. If raw records only contain a country, the accuracy cannot be higher than on country level.

Therefore, geolocation data needs to be enriched and transformed into a common format. This process is extremely important and is achieved by using open source geographical databases such as the ones from geonames.org or openstreetmap.org.

Put differently, the data enrichment task is to either:

  1. Find the latitude and longitude from a given city and country pair. Example: What are the coordinates for US, San Francisco?
  2. And on the other hand, if only the latitude and longitude is given, the task is to obtain the closest city for those coordinates. Example: What is the city and country for the coordinates 52.524526 13.410037?

The next sections describe all the major steps that need to be followed in order to build a geolocation database from scratch.

Extract Geolocation Data from WHOIS Records Directly

This section describes how the different WHOIS databases from the five major Regional Internet Registries (RIR’s) provide direct geolocation support for IP networks in their WHOIS records.

By analyzing and parsing WHOIS data from all five Regional Internet Registries, many IP addresses can be mapped to a geographical location. Since each RIR has their own WHOIS database format, each RIR needs to be treated distinctively. In the next sections, it will be discussed how geolocation information is provided in each of the five different WHOIS databases.

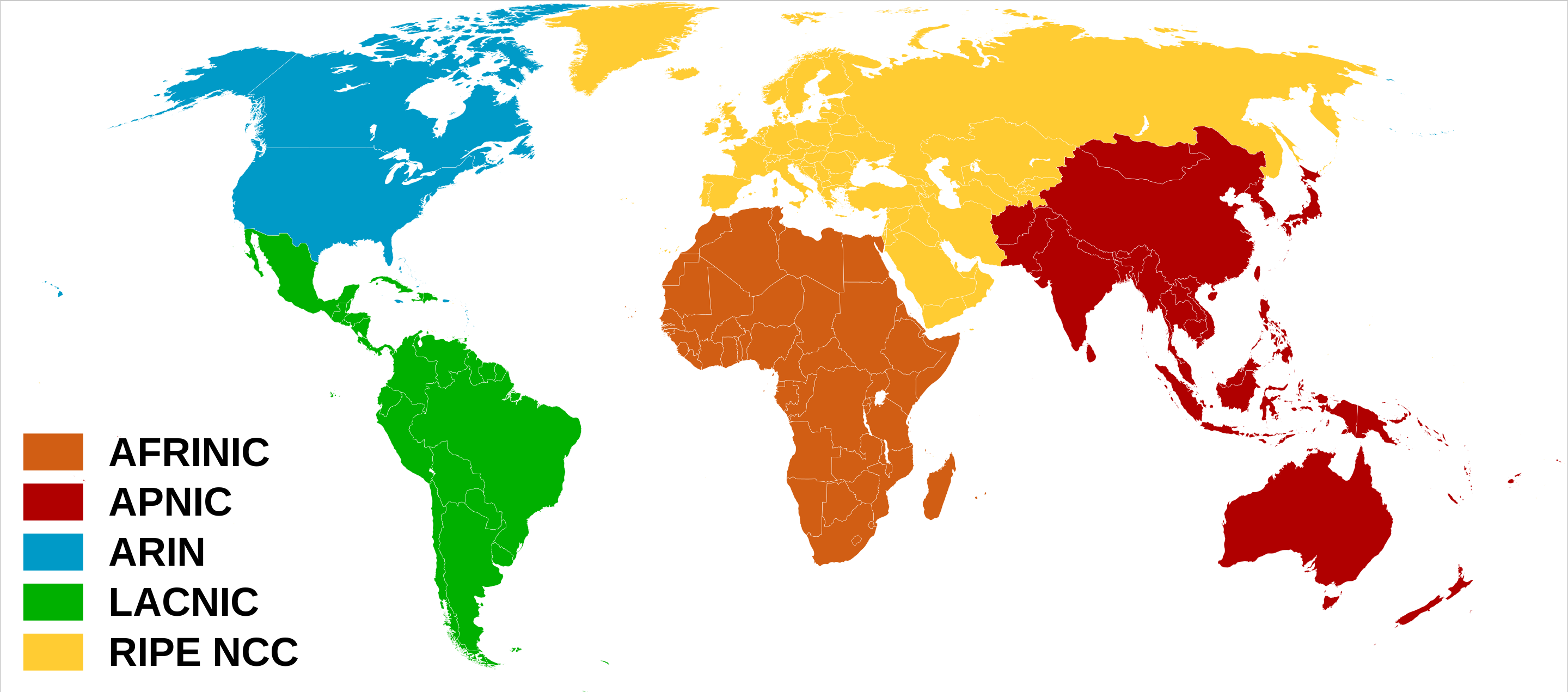

Figure 1: The five different Regional Internet Registries (Source)

Geolocation in RIPE NCC

The RIPE NCC database has two different attributes that provide geolocation information for inetnum and inet6num objects. The inetnum and inet6num objects assign an IP network to an organization. It is suggested to read the RIPE documentation about inetnum and inet6num objects.

As mentioned, there are two different attributes in inetnum and inet6num objects that allow to provide geolocation information to IP networks:

  1. The geoloc attribute
  2. The geofeed attribute

The geoloc attribute

The first attribute is the geoloc attribute. The geoloc attribute simply contains latitude and longitude coordinates in string format (Example: "47.855374 12.132041").

The geoloc attribute is defined in the RIPE Database Docs as follows:

“geoloc:” - The geolocation coordinates for the resource in decimal degrees notation. Format is latitude followed by longitude, separated by a space. Latitude ranges from [-90,+90] and longitude from [-180,+180]. All more specific objects to the inetnum object containing this attribute inherit this data.

For example, the inetnum object for the IP address 217.72.221.0 includes the geoloc attribute. The WHOIS record below can be obtained via any whois client with the terminal command whois 217.72.221.0:

inetnum:        217.72.221.0 - 217.72.221.255
netname:        KOMRO
descr:          komro GmbH
country:        DE
admin-c:        KIN65-RIPE
tech-c:         KIN65-RIPE
status:         ASSIGNED PA
mnt-by:         KOMRO-MNT
mnt-lower:      KOMRO-MNT
mnt-routes:     KOMRO-MNT
created:        2003-08-29T12:22:59Z
last-modified:  2017-07-31T05:45:34Z
source:         RIPE # Filtered
geoloc:         47.855374 12.132041
language:       DE

So what does the above WHOIS record reveal? The responsible organization of the network 217.72.221.0 - 217.72.221.255 is komro GmbH and the geoloc attribute claims that the network is located at the coordinates 47.855374 12.132041. Those coordinates point to Rosenheim, a city close to Munich in Germany.

What is the total coverage of the geoloc attribute for all inetnum and inet6num objects in the RIPE NCC database?

At the time of writing in July 2023, there were 4,190,644 inetnum and 819,381 inet6num objects in the RIPE NCC database. But only 114,389 inetnum or inet6num objects contained the geoloc attribute.

Therefore, the overall coverage of the geoloc attribute is only 2.3%. However, more and more organizations start using the geoloc attribute, therefore it is useful to start collecting it.

The geofeed attribute

Another method to provide geolocation information in the RIPE NCC database is the geofeed attribute.

The geofeed attribute is defined in the RIPE Database Docs as follows:

“geofeed:” - Contains a URL referencing a CSV file containing geolocation data for the resource. The geofeed format is defined in RFC 8805.

The value of the geofeed attribute is a HTTPS url that points to a file that contains geolocation information. The format of such geofeed files is specified in RFC 8805. Currently, there are two different ways to provide such a geofeed url in WHOIS records:

An example of using the remarks attribute to specify a geofeed url would be:

inetnum:        178.237.189.0 - 178.237.191.255
netname:        OOOSET-NET
descr:          OOO SET
remarks:        INFRA-AW
remarks:        Geofeed https://github.com/is1581/geofeedset/blob/main/ip4set.csv
country:        RU

Using the remarks attribute requires to specify the geofeed url in the format Geofeed {URL} in order to indicate that the url points to a RFC 8805 geofeed file.

The next example illustrates how the geofeed attribute is used in the RIPE NCC database. The terminal command whois 193.56.36.0 returns a WHOIS record that follows the geofeed: attribute format:

inetnum:        193.56.36.0 - 193.56.36.255
country:        FR
netname:        FR-AERO-ME
geofeed:        https://ip-gfd.airbus.com/geofeed.csv
descr:          Airbus SAS
descr:          110Bis Av. du G?n?ral Leclerc, 93500 Pantin, France
descr:          FR AI ICC as ISP
geoloc:         48.902741962025644 2.422918799104585
language:       FR
org:            ORG-EDG4-RIPE
country:        FR
mnt-domains:    EADS-MNT
admin-c:        CI1306-RIPE
tech-c:         LR1133-RIPE
status:         ASSIGNED PI
mnt-by:         RIPE-NCC-END-MNT
mnt-by:         EADS-MNT
created:        2002-04-12T15:19:59Z
last-modified:  2023-06-06T12:37:59Z
source:         RIPE

As the WHOIS record above reveals, the geofeed url for the network 193.56.36.0 - 193.56.36.255 is https://ip-gfd.airbus.com/geofeed.csv. How does such a RFC 8805 geofeed CSV file look like?

What is the total coverage of the geofeed attribute for all inetnum and inet6num objects in the RIPE NCC database?

At the time of writing in July 2023, there were 6643 occurrences of geofeed urls in remarks attributes and 2035 WHOIS records had the geofeed attribute. Therefore, the overall coverage of geofeed urls is only 0.17%. However, geofeed files usually include more than one network, therefore, there are more networks with geolocation information than there are geofeed urls. Hence, the coverage number of 0.17% is misleading here.

Geolocation in ARIN

A not so recent article from 2018 discusses Geolocation in ARIN. The conclusion of this article is that geolocation is inherently difficult. It seems that ARIN does not provide much assistance to external entities that are looking to geolocate IP addresses.

Geolocation in the ARIN database for NetRange objects is provided via geofeed urls in Comment attributes. There was a request to add a dedicated geofeed property, but it was denied since adding geofeeds over Comment or Remark attributes is deemed sufficient. For example, when looking up the IP address whois 96.43.200.0, the following WHOIS record is obtained from ARIN:

NetRange:       96.43.192.0 - 96.43.223.255
CIDR:           96.43.192.0/19
NetName:        OFL-62
NetHandle:      NET-96-43-192-0-1
Parent:         NET96 (NET-96-0-0-0-0)
NetType:        Direct Allocation
OriginAS:
Organization:   Omni Fiber (OFL-62)
RegDate:        2022-03-30
Updated:        2022-12-07
Comment:        Geofeed https://omnifiber.com/geofeed.csv
Ref:            https://rdap.arin.net/registry/ip/96.43.192.0

Geofeed urls follow RFC 8805 and the format of those RFC 8805 files was already discussed in the section about RIPE NCC.

The ARIN database currently doesn’t make use of the geoloc attribute as it is the case in the RIPE NCC database.

Geolocation in LACNIC

LACNIC is much more supportive when it comes to geolocation compared to ARIN. LACNIC hosts a Geofeed Service that provides members the possibility to provide geolocation information for IP addresses they own. A good part of LACNIC members provided geolocation information which is publicly available at milacnic.lacnic.net/lacnic/geofeeds.

Furthermore, the LACNIC WHOIS database already provides geolocation information (accurate to city level) by default. The LACNIC database can be downloaded from their FTP server: ftp.lacnic.net/lacnic/dbase/

As can be seen in the LACNIC database excerpt below, LANIC provides city and country information for all inetnum and inet6num objects:

inetnum: 190.5.128/19
status: allocated
city: Antiguo Cuscatlan
country: SV
created: 2006-06-16
changed: 2020-08-31
source: LACNIC

inetnum: 190.5.160/19
status: allocated
city: Buenos Aires
country: AR
created: 2014-05-22
changed: 2014-05-22
source: LACNIC

inetnum: 190.5.192/20
status: allocated
city: POPAYAN
country: CO
created: 2006-11-30
changed: 2006-11-30
source: LACNIC

Geolocation in AFRINIC

According to the AFRINIC support page, AFRNIC does not provide geolocation services and does not have any formal or operational relationship with any geolocation provider.

Nevertheless, AFRINIC also supports the usage of geofeed urls in remarks attributes similar as in the RIPE NCC database. For example, when looking up the IP address with the command whois 102.222.84.0, the following WHOIS record is obtained:

inetnum:        102.222.84.0 - 102.222.84.255
netname:        TZ-DAR-CABLE
descr:          Wananchi Cable Tanzania
country:        TZ
admin-c:        WL8-AFRINIC
tech-c:         WL8-AFRINIC
status:         ASSIGNED PA
remarks:        Geofeed https://geofeed.zuku.co.tz/geofeed.txt
mnt-by:         WCL4-MNT
source:         AFRINIC # Filtered
parent:         102.222.84.0 - 102.222.87.255

In conclusion, AFRINIC provides geolocation information with the same attributes as with RIPE.

Geolocation in APNIC

APNIC provides roughly the same support for geolocation as RIPE NCC. According to a APNIC article about geolocation, they support the geoloc attribute and the geofeed urls via the remarks attribute.

Furthermore, APNIC seems to be quite open to improve the geolocation support as one of their publications suggests: “Do we need a registry for IP geolocation information?”.

For example, when looking up the IP address with the command whois 203.152.49.0, the following WHOIS record is obtained from APNIC:

inetnum:        203.152.49.0 - 203.152.49.255
netname:        PACIFICINTERNT-TH
descr:          Pacific Internet (Thailand) Ltd.
country:        TH
admin-c:        AP3-AP
tech-c:         NPT3-AP
abuse-c:        AP993-AP
status:         ALLOCATED NON-PORTABLE
remarks:        Geofeed https://intra.pacific.net.th/geofeed.csv
mnt-by:         MAINT-TH-PITH
mnt-irt:        IRT-PI-TH
last-modified:  2021-01-19T07:37:32Z
source:         APNIC

In conclusion, APNIC provides geolocation information with the same attributes as with RIPE.

Interpolate Geolocation Knowledge from WHOIS Records

This section describes how WHOIS attributes that were never directly intended for geolocation purposes can be used to derive geolocation intelligence. This process is inherently error prone, but the obtained results are too accurate to be ignored.

WHOIS data from the five Regional Internet Registries is the most accurate data source for IP addresses. The main purpose of WHOIS is to provide registrant information for organizations that own Internet numbers such as IP addresses or AS numbers. As such, WHOIS databases also often include the postal addresses and countries of the organization’s headquarter or administrative location.

Often, the postal address of an organization is also the geographical location where their IP addresses are used. This is of course not always the case. The administrative postal address of large organizations often doesn’t correspond with the location of all the organization’s IP addresses.

In the next sections, for each of the five RIR’s, an IP address example where the WHOIS data can be used to derive geolocation information will be discussed (positive example).

Additionally, a counterexample where WHOIS meta data is misleading will be provided (negative example). If applicable, a conclusion will be drawn from the examples.

Geolocation Interpolation in RIPE NCC

Positive Example - 185.212.53.138

When looking up the IP address 185.212.53.138 with a WHOIS client, the following WHOIS record is obtained:

inetnum:        185.212.53.136 - 185.212.53.143
netname:        PUMPENTECHNIK-ERKRATH-NET
descr:          Pumpentechnik Erkrath GmbH + Co. KG
country:        DE
admin-c:        CK5074-RIPE
tech-c:         CK5074-RIPE
status:         ASSIGNED PA
mnt-by:         KOMMITT-MNT
created:        2018-09-25T12:33:17Z
last-modified:  2018-09-25T12:33:17Z
source:         RIPE

person:         Christine Kessel
address:        Max-Planck-Str. 28
address:        40699 Erkrath
phone:          +49 211 925480
nic-hdl:        CK5074-RIPE
mnt-by:         KOMMITT-MNT
created:        2018-09-25T12:32:01Z
last-modified:  2018-09-25T12:32:01Z
source:         RIPE # Filtered

According to many different IP geolocation services, the IP address 185.212.53.138 is located in the city of Erkrath in Germany with coordinates 51.22235, 6.9083.

When looking at the above WHOIS record, it becomes clear that there are many different attributes that could be used to extract the city name “Erkrath” or the country “Germany”:

Certainly, it is very hard to extract the city name from the netname and descr attributes, since those names have a free format. However, the address attribute can be easily used to parse out the location, since postal adresses have a much stricter format.

Positive Example - 139.98.0.0

Another positive example is provided to illustrate that the descr attribute can often be used for geolocation purposes. When looking up the IP address 139.98.0.0 with whois, the following WHOIS record is obtained:

inetnum:        139.98.0.0 - 139.98.255.255
netname:        FYLKOMOEST
descr:          Oestfold Fylkeskommunes Sentraladministrasjon
descr:          Bos 220, N-1701
descr:          Sarpsborg
country:        NO
admin-c:        JT1367-RIPE
tech-c:         JT1367-RIPE
status:         LEGACY
mnt-by:         AS41572-MNT
mnt-by:         AS2116-MNT
created:        2004-02-02T16:19:07Z
last-modified:  2022-09-12T12:32:28Z
source:         RIPE

According to most geolocation services, the IP address 139.98.0.0 is located in the city of Sarpsborg in Norway. This corresponds with what the descr attribute of the above WHOIS record states. Even better, the WHOIS record above provides a full address which allows for very accurate geolocation. This is an example that underlines the usablilty of the descr attribute for accurate geolocation.

Negative Example - 109.134.237.140

When looking up the IP address 109.134.237.140 with a WHOIS client, the following WHOIS record is obtained:

inetnum:        109.134.0.0 - 109.134.255.255
netname:        BE-BELGACOM-ADSL1
descr:          ADSL-GO-PLUS
descr:          Belgacom ISP SA/NV
country:        BE
admin-c:        SN2068-RIPE
tech-c:         SN2068-RIPE
status:         ASSIGNED PA
mnt-by:         SKYNETBE-MNT
mnt-by:         SKYNETBE-ROBOT-MNT
created:        2011-11-25T10:16:24Z
last-modified:  2011-11-25T10:29:00Z
source:         RIPE

role:           Proximus NOC administrators
address:        Proximus SA de droit public
address:        TEC/NEO/IPR/TDN/DTO/DSL Internet Networks
address:        Boulevard du Roi Albert II, 27
address:        B-1030 Bruxelles
address:        Belgium
phone:          +32 2 202-4111
fax-no:         +32 2 203-6593
abuse-mailbox:  [email protected]
admin-c:        BIEC1-RIPE
tech-c:         BIEC1-RIPE
nic-hdl:        SN2068-RIPE
mnt-by:         SKYNETBE-MNT
created:        1970-01-01T00:00:00Z
last-modified:  2020-03-04T06:19:15Z
source:         RIPE # Filtered

The address attribute from above shows that the administrative location of the organization “Proximus” is located at Boulevard du Roi Albert II, 27, B-1030 Bruxelles, Belgium.

However, most geolocation providers place the IP address 109.134.237.140 in other Belgian cities such as Hasselt, Grimbergen or Wuustwezel. Therefore, if we would use the address attribute from this WHOIS record, we would obtain a sligthly wrong geolocation. However, using Bruxelles as geolocation is still better than picking the wrong country or even a wrong continent. This example shows why geolocation providers often have approximative accuracy.

Conclusion

Having seen the three examples from above, what attributes can be used from the RIPE NCC database to interpolate geolocation information from inetnum and inet6num objects?

The inetnum and inet6num have at least three attributes that can potentially be used to derive geolocation information:

  1. The country attribute (Only yields country level accuracy)
  2. The descr attribute
  3. The netname attribute (Unreliable and hard to parse)
  4. The address attribute (Strictly speaking an attribute of the role object and not inetnum and inet6num)

The country attribute is defined in the RIPE Database Docs as follows:

“country:” - This identifies a country using the ISO 3166-2 letter country codes. It has never been specified what this country represents. It could be the location of the head office of a multi-national company or where the server centre is based or the home of the End User. Therefore, it cannot be used in any reliable way to map IP addresses to countries.

The explanation above speaks for itself. It is somewhat safe to use the country attribute for geolocation, since the accuracy of country level information is rather coarse and thus the room of mistakes is reduced. Put differently: Since most multinational organizations have at least one postal address for each country, those organizations often use the postal address of the same country where the IP networks are actually used.

The descr attribute is defined in the RIPE Database Docs as follows:

“descr:” - A short description related to the object.

Therefore the contents of the descr attribute could be anything, since RIPE NCC does not strictly define what this value represents. It turns out that the descr attribute is often used by organizations to provide location and address information for the network. In conclusion, the descr attribute is very useful in order to derive geolocation information from it.

Additional information can be provided for inetnum and inet6num objects with the role object. Therefore, it is also interesting to discuss the role object.

The address attribute of role objects is defined in the RIPE Database Docs as follows:

“address:” - This is a full postal address for the role represented by this object.

Even though address attributes can have high geolocation accuracy, the address attribute specifies the postal address of a role object. The inetnum and inet6num objects can have an address assigned via a role object, since the postal address of a company is not necessarily the location where the IP addresses are used.

However, as the negative example from above proofs, it is a mistake to assume that IP addresses have the same geolocation as the postal address of a role object.

Geolocation Interpolation in ARIN

Positive Example - 192.42.152.0

When looking up the IP address 192.42.152.0 with a WHOIS client, the following WHOIS record is obtained:

NetRange:       192.42.152.0 - 192.42.152.255
CIDR:           192.42.152.0/24
NetName:        UMN-CC-NET
NetHandle:      NET-192-42-152-0-1
Parent:         NET192 (NET-192-0-0-0-0)
NetType:        Direct Allocation
OriginAS:       AS57, AS217
Organization:   University of Minnesota (UNIVER-233-Z)
RegDate:        1988-10-12
Updated:        2021-12-14
Ref:            https://rdap.arin.net/registry/ip/192.42.152.0

OrgName:        University of Minnesota
OrgId:          UNIVER-233-Z
Address:        Office of Information Technology
Address:        2218 Univ Ave SE
City:           Minneapolis
StateProv:      MN
PostalCode:     55414
Country:        US
RegDate:        2009-10-13
Updated:        2019-09-30
Comment:        http://www.umn.edu/
Ref:            https://rdap.arin.net/registry/entity/UNIVER-233-Z

Most IP geolocation providers locate the IP address 192.42.152.0 in the city of Minneapolis in the US. This corresponds with the City, StateProv, PostalCode and Country attributes of the above WHOIS record. Thus, the above example shows that those attributes can be used to geolocate the network 192.42.152.0 - 192.42.152.255.

Negative Example - 136.50.220.162

When looking up the IP address 136.50.220.162 with a WHOIS client, the following WHOIS record is obtained:

NetRange:       136.32.0.0 - 136.63.255.255
CIDR:           136.32.0.0/11
NetName:        GOOGLE-FIBER
NetHandle:      NET-136-32-0-0-1
Parent:         NET136 (NET-136-0-0-0-0)
NetType:        Direct Allocation
OriginAS:
Organization:   Google Fiber Inc. (GF)
RegDate:        2015-10-06
Updated:        2015-10-06
Ref:            https://rdap.arin.net/registry/ip/136.32.0.0

OrgName:        Google Fiber Inc.
OrgId:          GF
Address:        1600 Amphitheatre Parkway
City:           Mountain View
StateProv:      CA
PostalCode:     94043
Country:        US
RegDate:        2010-10-08
Updated:        2019-11-01
Ref:            https://rdap.arin.net/registry/entity/GF

Most IP geolocation providers locate the IP address 136.32.0.0 in San Antonio in Texas. However, if we would have used the above WHOIS record for geolocation, we would have taken the head office from Google in Mountain View, California for geolocation. This would obviously have been a mistake.

Conclusion

It seems that using the following ARIN WHOIS attributes is somewhat reliable if the organization is small or centered in only one location:

  1. Address attribute
  2. City attribute
  3. StateProv attribute
  4. PostalCode attribute
  5. Country attribute

Examples for small organizations are universities, hospitals and governmental ministries. Those organizations use the IP addresses of NetRange objects the at the same location as their administrative postal address. This is not the case with larger businesses or nation wide organizations that own many NetRange objects.

Geolocation Interpolation in LACNIC

It is not necessary to derive geolocation information from LACNIC WHOIS records, since LACNIC provides full geolocation support in their WHOIS database as discussed earlier on this page.

Geolocation Interpolation in AFRINIC

AFRINIC has the same WHOIS database format as RIPE NCC, so the same principles apply as for RIPE NCC.

In short, it is possible to use the country or descr attribute from inetnum or inet6num objects from the AFRINIC database to interpolate geolocation information.

Furthermore, the address attribute from role objects can also be used to derive geolocation information. The address attribute specifies the postal address of a role, which is often used to specify ownership of a network.

Geolocation Interpolation in APNIC

APNIC uses the same WHOIS database format as RIPE NCC, so the same principles apply as for RIPE NCC.

Open Source Geolocation Projects

Several open source geolocation projects are explored in this section. Open source projects are often the basis for many commercial geolocation projects. Especially the contributions from RIPE NCC, APNIC and ARIN are reviewed, since those Regional Internet Registries provide the best support for geolocation.

RIPE IPmap

RIPE IPmap is (was - it seems that the it is not longer maintained) an API that provides geolocation data for core Internet infrastructure. RIPE IPmap uses several different engines to infer geolocation for IP addresses. RIPE IPmap is a system for active (live) IP geolocation, which means that each IP has to be geolocated actively, which can be a time consuming process.

The most interesting engine from RIPE IPmap is called latency and single-radius engine. The latency engine uses measurements from RIPE Atlas to provide a latency radius for the geolocation of an IP address. Put differently, by using hundreds of geographically distributed latency measurement servers from RIPE Atlas, it is possible to estimate the location of an IP address by triangulating with minimum RTT measurements. The RIPE IPmap documentation provides a full description for the latency engine.

It is quite straightforward to understand how the latency engine works in practice. If a certain IP address needs to be geolocated, latency measurements can be either obtained by actively pinging the IP address or by recording the RTT of incoming connections (passive). The minimum latency sets an upper threshold for the maximal possible distance due to the definition of the speed of light in fiber optic medium.

reverse-dns is another RIPE IPmap engine that uses the hostnames from PTR records in order to geolocate IP addresses. The RIPE IPmap documentation explains how the reverse-dns engine works. Essentially, the idea is to extract city level geolocation from PTR records of hostnames. For example, the following traceroute output reveals how hostnames from routers indicate their geogrpahical location:

ae59-300.edge9.frankfurt1.level3.net (62.67.4.229)  31.713 ms  29.638 ms
9  ae59-300.edge9.frankfurt1.level3.net (62.67.4.229)  31.189 ms * *
10  * att-level3-washington12.level3.net (4.68.62.30)  124.232 ms  120.208 ms
11  att-level3-washington12.level3.net (4.68.62.30)  119.936 ms  122.603 ms *

In the traceroute dump from above, it can be seen how the IP 62.67.4.229 is located in Frankfurt (Germany) and the IP 4.68.62.30 in Washington (USA) according to their respective hostnames.

The RIPE IPmap database can be downloaded from here: https://ftp.ripe.net/ripe/ipmap/

The database has the following CSV format: ip, geolocation_id, city_name, state_name, country_name, country_code_alpha2, country_code_alpha3, latitude, longitude, score

Unfortunately, while the ideas of RIPE IPmap are certainly still good, the project’s accuracy and coverage degraded considerably according to the former maintainers website. It seems like there are no new contributions to RIPE IPmap since 2019.

geofeed-finder

geofeed-finder is a open source project by Massimo Candela who was formerly employed by RIPE NCC. The purpose of the project is as follows:

This utility discovers and retrieves geofeed files from whois data. Additionally, it validates the ownership of the prefixes, manages the cache, and validates the ISO codes. See RFC9092.

This tool can be used to extract geofeeds from WHOIS data according to RFC 9092. As discussed on this page, the coverage of geofeed information in all networks is very low, therefore this tool has limited real life usablilty, but it is promising since geofeed coverage will likely increase in the coming years.

LACNIC Geofeeds Service

The LACNIC Geofeeds Service provides geolocation information for a good part of LACNIC’s members. The data is publicly available for download at milacnic.lacnic.net/lacnic/geofeeds. This is a very important project, since it allows to access geolocation information where it should be collected: At the RIR level.

OpenGeoFeed

OpenGeoFeed is a open source project that compiles self-published geofeeds according to RFC 9092. OpenGeoFeed provides a single geofeed file that contains all known public geofeed files here: opengeofeed.org/feed/public.csv

While OpenGeoFeed is a promising project, it seems that the geofeed coverage is not up to date and it is unlikely that the data sources are frequently updated.

Geolocation Data Enrichment

Often the raw geolocation information obtained from WHOIS data or geofeeds don’t include all the meta data necessary to populate all geolocation fields that the database provides. In this section, it is explaind how raw geolocation data is enriched by considering third party sources.

This data enrichment process is achieved by using open source geographical databases such as:

The data enrichment process can be divided into two cases:

  1. For those raw records where only city and country geolocation information is given, there is a need to find the latitude and longitude (coordinates) from a given city and country. Example: What are the geographical coordinates for US, San Francisco?
  2. On the other side, if only the latitude and longitude is available in the raw data, the goal is to obtain the closest city and country for those coordinates. Example: What is the closest city and country for the coordinates 52.524526 13.410037 (if there is a city at all close to those coordinates) ?

For example, ipapi.is uses the following databases to enrich geolocation information:

  1. GeoNames Postal Code Files - All known postal codes of all countries of the world (excluding some countries for legal reasons)
  2. cities500.zip - all cities with a population > 500
  3. countryInfo.txt - country information such as Country Capital, Population, Continent and other country meta data

#reads #ipapi.is #database #geolocation #writeup
